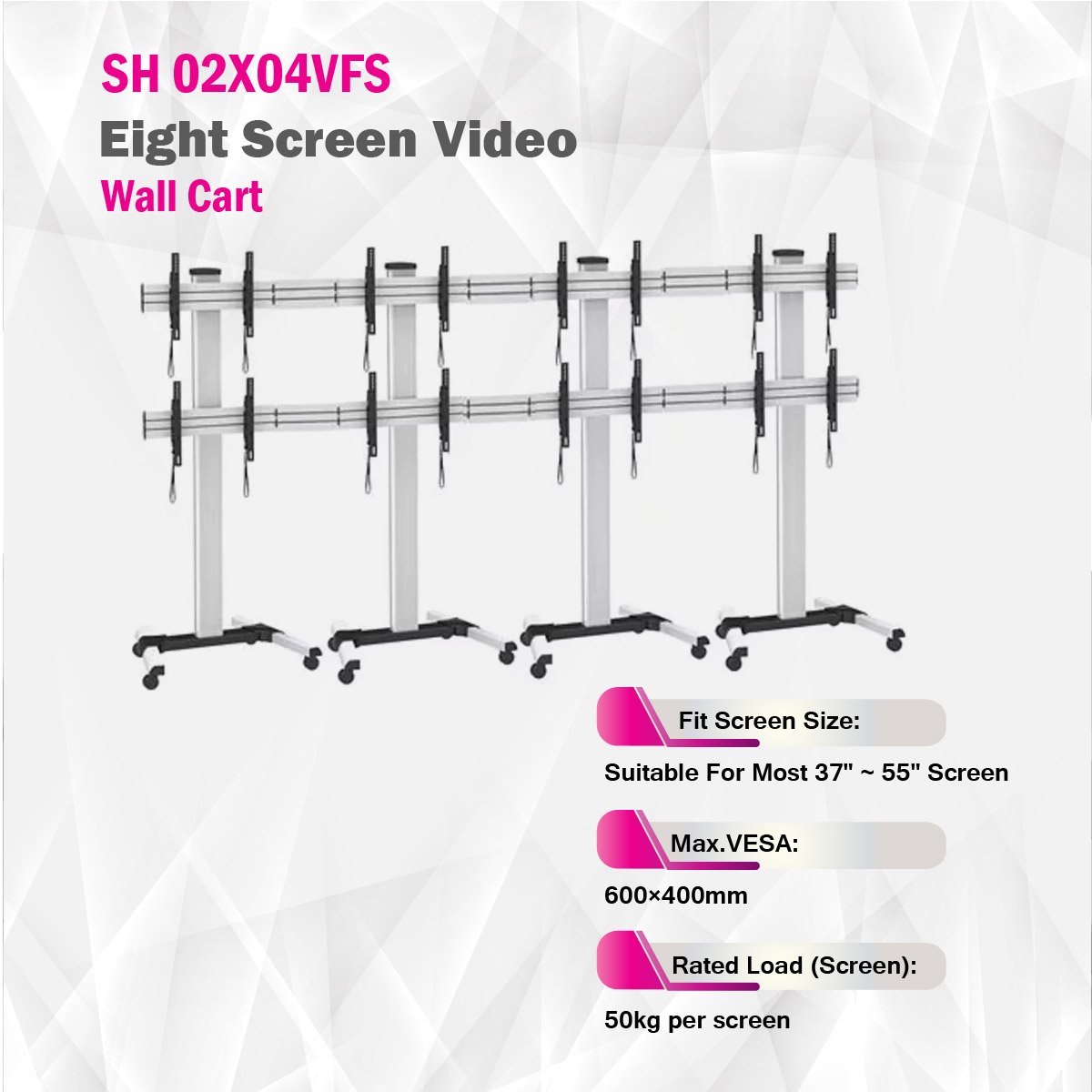

SH 02X04VFS Eight Screen Video Wall Cart

Product Category: TV Cart & Stand
Rank: Standard
Material: Steel+Aluminum+Plastic
Surface Finish: Powder Coating,Oxidized
Column Size: Total Height : 2232mm
Dimension: 4965x2232x750mm
Fit Screen Size: Suitable For Most 37″ ~ 55″ Screen
VESA Compatible: 200×200, 400×200,300×300,400×400, 600×400mm
Max.VESA: 600×400mm
Rated Load (Screen): 50kg per screen
Screen Qty: 2×4
Tilt Range: +15° ~ -15°
Adjustable TV Height: yes
Cable Management: yes
Wheel: yes
Instruction Manual Included: Yes

The SH 02X04VFS is a standard eight-screen video wall cart, offering a robust and flexible solution for multi-screen displays. Crafted from a combination of steel, aluminum, and plastic, this cart ensures durability and stability. Its powder-coated and oxidized surface finish not only enhances its aesthetics but also provides long-lasting protection against wear and tear.With a total height of 2232mm and dimensions measuring 4965x2232x750mm, this cart is designed to accommodate most 37" to 55" screens. It supports various VESA patterns, including 200x200, 400x200, 300x300, 400x400, and 600x400mm, ensuring compatibility with a wide range of screens.The SH 02X04VFS is capable of supporting up to eight screens, arranged in a 2x4 configuration. Each screen has a maximum load capacity of 50kg, guaranteeing secure placement and stability. The cart offers a tilt range of +15° to -15°, allowing you to achieve optimal viewing angles for your displays

Rank: Standard
Material: Steel+Aluminum+Plastic
Surface Finish: Powder Coating,Oxidized
Column Size: Total Height : 2232mm
Dimension: 4965x2232x750mm
Fit Screen Size: Suitable For Most 37″ ~ 55″ Screen
VESA Compatible: 200×200, 400×200,300×300,
400×400, 600×400mm
Max.VESA: 600×400mm
Rated Load (Screen): 50kg per screen
Screen Qty: 2×4
Tilt Range: +15° ~ -15°
Adjustable TV Height: yes
Cable Management: yes
Wheel: yes
Instruction Manual Included: Yes

TV Wall Mount,TV Bracket,Heavy-Duty TV Wall Mount,Tilting TV Wall Mount,Low Profile TV Wall Mount, Ergonomic Mount,Video Wall Mount,Digital Signage Wall Mounts
